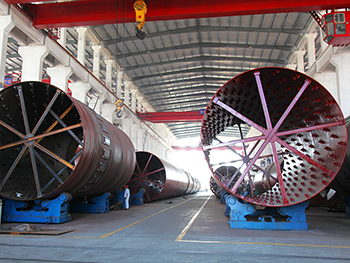

Triple Pass Dryer
Our triple pass dryer is characterized by compact structure, reasonable layout, reliable running, high thermal efficiency, and low power consumption.
Features
- With self-insulated drums, the triple pass dryer has thermal efficiency as high as 80% while the thermal efficiency of single drum drying machine is only 35%. Compared with the single drum product, the triple drum drying machine saves coal by 68% and its output is increased by 100%.
- The length of the triple drum rotary drying machine is only 40% of that of the single drum product, which is conducive to process layout. This also reduces plant construction area and saves 40% of the project investment. The floor area of this triple pass dryer is approximately 20 square meters.
- Our product adopts the heat-resistant, wear-resistant alloy steel plate which is four time more wear-resistant than ordinary steel plate, so it has long service life.
- Temperature of the material discharged from the triple pass dryer is lower than 60℃ while the discharging material from the single drum drying machine is 150℃ in temperature. The low outlet temperature helps to extend the service time of the dust removal equipment. An air box pulse bag type dust remover can be used.
- The hot blast stove can be used in conjunction with the fluidized bed furnace, coal stove, and gas furnace.
Technical Parameters
| Specification | φ2.0×6m | φ2.5×6.5m | φ2.7×7m | φ3×7m | φ3.2×7m | φ3.6×8m | φ4.2×8.5m | |
| Diameter of the outer drum m |
2.0 | 2.5 | 2.7 | 3 | 3.2 | 3.6 | 4.2 | |
| Length of the outer drum m |
6 | 6.5 | 7 | 7 | 7 | 8 | 8.5 | |
| Drum volume m3 |
18.84 | 31.89 | 40.5 | 49.46 | 56.26 | 81.38 | 118 | |
| Drum speed rpm |
3-10 | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 | |
| Residence time of material min |
12-30 | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 | |
| Initial moisture content of material % |
6-25 | 6-25 | 6-25 | 6-25 | 6-25 | 6-25 | 6-25 | |
| Final moisture content of material % |
≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | |
| Maximum air intake temperature ℃ | 750-900℃ | 750-900℃ | 750-900℃ | 750-900℃ | 750-900℃ | 750-900℃ | 750-900℃ | |
| Capacity T/H |
Slag | 20-25 | 25-30 | 30-35 | 35-10 | 40-45 | 50-65 | 70-85 |
| Fly ash | 10-17 | 17-21 | 20-25 | 23-27 | 25-30 | 30-45 | 45-63 | |
| Yellow sand | 20-27 | 25-40 | 27-45 | 30-45 | 35-50 | 55-75 | 75-99 | |
| Motor model | Yr160m-4 | Yr132m-4E | Yr160m-4 | Yr160m-4 | Yr132m-5E | Yr160m-4E | Yr160m-4E | |
| Motor power KW |
7.5×2 | 11×2 | 7.5×4 | 7.5×4 | 11×4 | 15×4 | 18.5×4 | |
| Reducer model | XWD-6 | XWD-6 | XWD-6 | XWD-6 | XWD-6 | XWD-8 | XWD-8 | |
| Reducer speed ratio | 17-29 | 17-29 | 17-29 | 17-29 | 17-29 | 17-29 | 17-29 | |
| Equipment weight T |
25 | 32 | 35 | 38 | 43 | 57 | 77 | |
