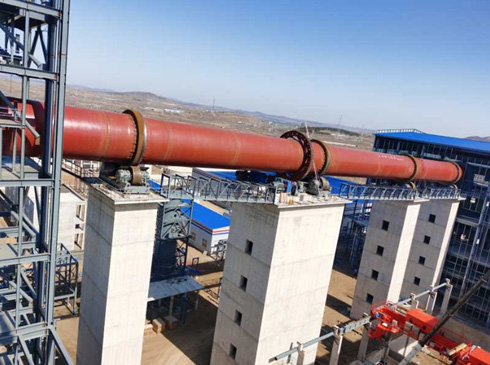

Rotary Kiln for Nickel Laterite Ores

Rotary Kiln for Nickel Laterite Ores
Rotary Kiln for Nickel Laterite Ores Rotary Kiln for Nickel Laterite Ores

Model: Y52118 rotary kiln
Application: nickel laterite ores roasting with capacity of 1950~2200t/d
Spec.: Φ5.2×118m (Inner diameter*length)
Dual drive, dual thrust roller
Roller support base: 5-base
Inclination: 3.5% (sine)
Rotation speed:
Main drive: 0.2 ~1.233r/min
Auxiliary drive: 7.82r/h
Sealing:
Kiln inlet: flexible sealing
Kiln outlet: flexible sealing
Kiln inlet cooling: air cooling
Weight: 1690t (The weight of material feeding and discharge cover is excluded.)

Parts specifications
  • Main drive motor
      Quantity: 2
      Model: YSNP450L1-6
      Power: 355X2 kW
      Voltage: 380V
      Rotation speed: 980r/min
      Speed regulation range: 154~980r/min
  • Main reducer
      Model: P320-90Ⅴ/Ⅵ
      Center distance: 1650mm
      Nominal speed ratio: 90/92.273
      Manufacturer: Nanjing High Accurate Drive Equipment Manufacturing Group Co., Ltd.
  • Auxiliary drive motor
      Quantity: 2
      Model: Y225S-4
      Power: 37 kW
      Voltage: 380V AC
      Rotation speed: 1480r/min
  • Auxiliary reducer
      Quantity: 2
      Model: YNL305-14Ⅰ/Ⅱ
      Center distance: 305mm
      Nominal speed ratio: 14/14.291
