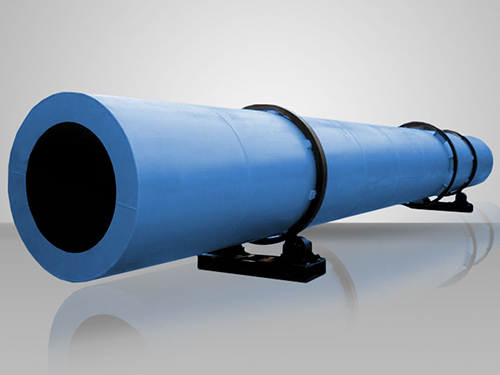

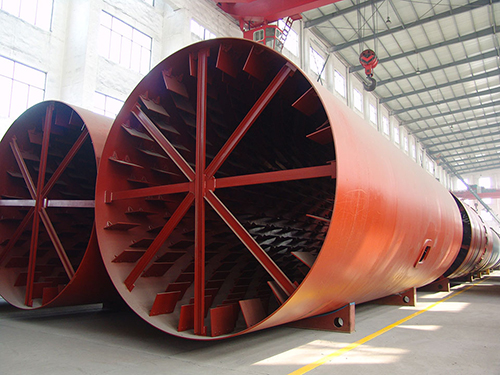

Monocular Cooler
The monocular cooler is an important part of a rotary kiln system. It enables the clinker, the temperature of which is 1000℃ to 1200℃, coming from the rotary kiln to fully exchange with the air through the rotation of the shell body, making the material cool down to 200℃ or lower while improving the grindability of the material. Feed the air used to cool the clinker into the kiln for secondary circulation, which can improve the thermal efficiency of the kiln.
Our monocular cooler is characterized by simple structure, high operation rate, and convenient maintenance.
Main Technical Data
| Specifications | Capacity (t/h) |
Transmission Device | Total Weight (t) |
||
| Motor | Reducer | ||||
| Model | Powder | Model | |||
| φ2.0 ×2.0 | 7.5 | Y225M-6 | 30 | ZL75-15 | 61.1 |
| φ2.2 ×22 | 9 | YR250S-6 | 45 | ZL85-14 | 69.8 |
| φ2.5 ×25 | 14 | Y250M-4 | 55 | ZS125-3 | 111.3 |
| φ2.8 ×30 | 16 | Y280M-6 | 55 | ZS1000-31.5 | 134.6 |
| φ3.0 ×30 | 20 | Y315S-6 | 75 | ZL115-15 | 169 |
| φ3.2 ×36 | 28 | Y315M3-6 | 110 | ZSY400-28 | 206.9 |
| φ3.6 ×36 | 35-38 | Y355M-6 | 185 | ZSY450-28 | 264.7 |
| φ4.0 ×36 | 50-60 | Y355L-6 | 220 | ZSY450-25 | 290 |
| φ4.0 ×45 | 60-70 | Y335L-6 | 250 | ZSY450-25 | 345 |
| φ4.5 ×50 | 70-75 | Y4003-6 | 315 | ZSY500-25 | 480 |
