Rotary Dryer

Rotary Dryer
Rotary Dryer Rotary Dryer

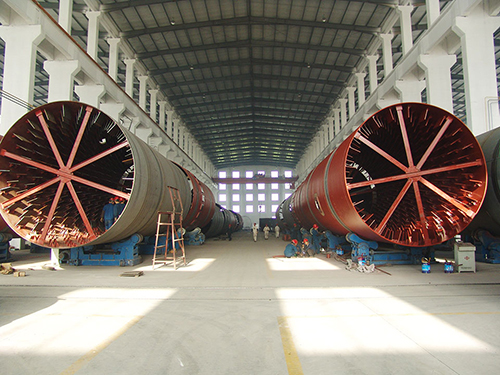

The rotary dryer is mainly composed of rotating body, blocking plate, gearing, and support means.

Working Principle

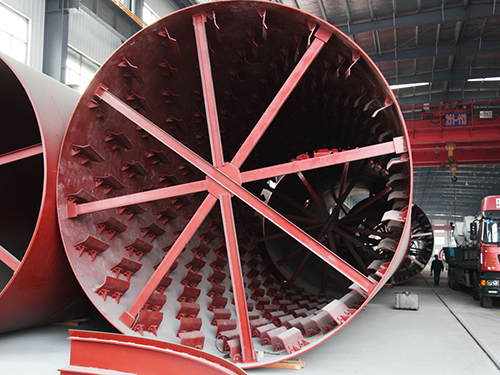

Inside the rotating body, there are multiple reasonably-placed lifting blades with alternately changing angles. Under the action of these lifting blades, the hydrous materials spread in the rotating body. Water inside the materials is turned into vapor by the hot air and then the vapor is released into the atmosphere, so the materials are dried.

The rotary dryer is used for the drying of slag, clay, limestone, and other materials. It is mostly applied in the industries of cement, chemical, metallurgy, building materials, and so on. The rotary dryer produced by our company features strong drying capacity, high yield, stable running, low energy consumption, and easy operation.

Technical Parameters
Specification Diameter
mm
Length
mm
Capacity
t/h
Speed
r/min
Tilt degree
%
Motor Reducer model Weight
t
Model Power
KW
Ф1.5×12 Ф1500 12000 6-9 1.4-7 5 YCT-225-4B 15 JZQ500 18.6
Ф1.5×14 Ф1500 14000 7-10 1.4-7 5 YCT-225-4B 15 JZQ650 17.9
Ф1.6×14 Ф1600 14000 8-11 1.4-7 5 YCT-225-4B 15 JZQ650 18.6
Ф1.8×14 Ф1800 14000 9-13 3.5-6.5 5 YCT-225-4B 15 JZQ650 20.85
Ф2.0×14 Ф2000 14000 11-16 2.2-7.4 5 YCT-250-4A 18.5 JZQ750 23.2
Ф2.2×12 Ф2200 12000 12-17 2.2-7.4 5 YCT-250-4B 22 JZQ750 30.3
Ф2.2×14 Ф2200 14000 14-20 2.2-7.4 5 YCT-250-4B 22 JZQ750 32.23
Ф2.4×18 Ф2400 18000 21-31 2.2-7.4 4 YCT-280-4A 30 JZQ850 45
Ф2.4×20 Ф2400 20000 23-34 2.2-7.4 4 YCT-315-4A 37 JZQ850 54
Ф2.4×22 Ф2400 22000 26-38 2.2-7.4 4 YCT-315-4A 37 JZQ850 58
Ф2.6×20 Ф2600 20000 28-40 2.2-7.4 4 YCT-315-4B 45 ZQ100 60.5
Ф2.6×24 Ф2600 24000 33-48 2.2-7.4 4 YCT-315-4B 45 ZQ100 72.7
Ф3.0×20 Ф3000 20000 35-54 8.4-3.85 4 YCT-355-4A 55 ZL100 86
Ф3.0×25 Ф3000 25000 46-64 8.4-3.85 4 YCT-355-4B 75 ZL100 96
Ф3.0×28 Ф3000 28000 52-74 8.4-3.85 4 YCT-355-4B 75 ZL100 122
Ф3.2×25 Ф3200 25000 60-80 2.4-7.6 4 YCT-355-4C 90 ZL115 119
