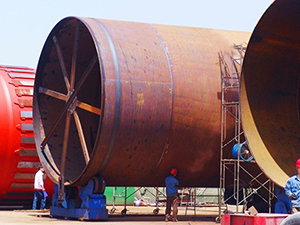

This rotary kiln is a thermal processing system designed for titanium dioxide production. The hydrolytic titanium dioxide undergoing dehydration and calcination inside the kiln body. After cooling and screening, the final product--titanium dioxide been produced.
|Rotary kiln size (m)||Model||Kiln specifications||Main motor||Type of thrust roller||Type of supports||Total weight(t)|
|Rotary speed of kiln (r/min)||Slope of the kiln shell (%)||Production capacity (t/d)||Power (kW)||Rotary speed (r/min)|
|Φ2.4×38||T929||0.2 ～0.6||2.2||30||30||1470||Mechanical||Roller support||150|
|Φ2.8×53||J920||0.1 ～0.3||4||50||22||1470||Mechanical||Roller support||271|
|Φ3.2×55||J931A||0.1 ～0.3||4||67||55||1470||Hydraulic||Roller support||275.4|
