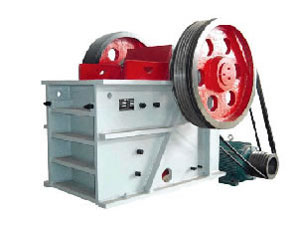

Jaw Crusher

The PE series of jaw crusher is mainly used for the coarse and medium crushing operations of various ore materials with compressive strength not exceeding 320Mpa. Featuring simple structure, reliable running, easy maintenance, low operating costs, large crushing ratio, and uniform size of processed material, this product is widely used in the mining, smelting, building material, highway, railway, water conservancy, chemical, and other industries.

Working Principle

The eccentric shaft is driven to rotate by the motor through the pulley, making the moveable jaw approach and leave the fixed jaw periodically, so as to squeeze, rub, and grind the material. Consequently, the material becomes smaller and gradually falls until it is discharged from the discharge port.

Technical Parameters of Jaw Crusher

Model	Max. Feed Size mm	Adjustment range of discharge opening mm	Processing Capacity m³/h	Motor Power kW	Weight(Excluding motor) t
PE-60×100	45	3-10	0.2-0.6	1.1	0.16
PE-150×250	125	10-40	0.6-3	5.5	0.81
PE-250×400	210	20-80	3-13.1	15	2.8
PE-250×500	210	20-80	5.7-31	18.5	3.37
PE-400×600	340	40-100	10-40	30	6.5
PE-430×600	400	90-140	35-60	37	6.5
PE-475×1050	400	90-140	37.5-81	55	11.7
PE-500×750	425	50-100	28.5-62.5	55	10.3
PE-550×900	450	50-120	47-75	55	7.8
PE-600×750	500	150-200	50-100	55	12
PE-600×900	500	65-160	30-75	55-75	15.5
PE-620×900	500	95-145	31-70	55-75	14.3
PE-670×900	520	195-245	66-83	55-75	14.8
PE-720×900	520	195-245	66-83	55-75	14.8
PE-750×1060	630	80-140	72-130	110	29.3
PE-800×1060	640	100-200	85-143	110	30
PE-870×1060	660	200-260	181-210	110	30.5
PE-900×1060	685	230-290	100-250	110	31
PE-900×1200	750	95-165	87-164	110	50
PE-1000×1200	850	195-265	197-214	110	50.6
PE-1100×800	650	50-125	38-156	132	19.86
PE-1200×1500	1000	150-300	250-500	220	82.3
PE-1500×1800	1200	220-350	281-625	280	122
PE1600×2100	1250	175-300	870-1500	355	169
