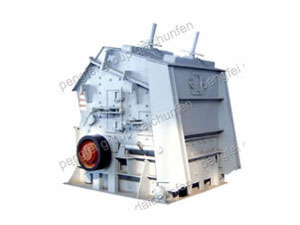

Impact Hammer Crusher

Impact Hammer Crusher

Our PF series of impact hammer crusher is able to crush various ore materials with the particle size no more than 500mm and the compressive strength not exceeding 250Mpa, such as basalt, granite, limestone, etc. The particle size of the discharged material is adjustable.

This series of impact hammer crusher is characterized by large crushing ratio, high efficiency, energy saving, and convenient maintenance. It is widely applied in the water and electricity, highway, railway, construction, and other fields.

Working Principle

Driven by the motor, the rotor rotates at a high speed. The fed material collides with the hammer on the rotor and is crushed. It is then knocked back to the lining plate and is crushed again. Finally, the material is discharged from the discharge port.

Technical Parameters
Model Size mm Feed opening
mm 		Max. feed size mm Capacity t/h Motor Power KW Weight(excluding electric motor)t
PF-0607 Ф644×740 320×770 100 15-25 30 4
PF-0807 Ф850×700 400×730 300 25-35 30-45 8.13
PF-1007 Ф1000×700 400×730 300/600 37-45 30-55 9.5
PF-1010 Ф1000×1050 400×1080 350/600 50-80 55-75 13.2
PF-1013 Ф1000×1300 650×1350 400/600 80-120 90-110 12
PF-1210 Ф1250×1050 400×1080 350/600 70-120 110-132 15.2
PF-1214 Ф1250×1400 400×1080 350/600 130-180 132-160 20
PF-1310 Ф1300×1050 490×1170 400/650 70-120 110-160 13.5
PF-1315 Ф1320×1500 860×1520 500/650 150-220 180-220 20.5
PF-1320 Ф1320×2000 860×1520 500/650 160-250 180-260 19
PF-1515 Ф1500×1500 850×1580 550/700 220-280 280-315 29.5

Note: The above data are just for reference. For actual parameter values, please refer to the signed contract.
