Cone Crusher

Cone Crusher

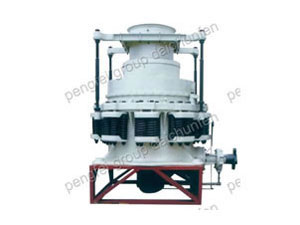

This series of spring cone crusher is suitable for crushing various medium-hardness ores and rocks. It features reliable structure, high work efficiency, easy adjustment, and reasonable operating costs.

The spring system is used for overload protection, which can let iron block through the crushing chamber without damaging the cone crusher. Dry oil or water is used for sealing, isolating the stone powder from the lubricating oil to ensure reliable operation. The form of the crushing chamber depends on the use of the ore. The standard type, PYB, is suitable for medium crushing while the PYD and PYZ are applicable to fine crushing.

Technical Parameters
Model Diameter of Crushing Cone
mm
Size of Feed Opening
mm
Max. Feed Size
mm
Adjustment Range of Discharge Opening
mm
Capacity
t/h
Power
KW
Speed of Eccentric Shaft
r/min
Weight (including Motor)
t
Dimensions (length×width× height)
mm
PYB600 Ф600 75 65 12-15 40 30 356 5 2234×1370×1675
PYD600 Ф600 40 35 3-13 12-23 30 356 5.1 2234×1370×1675
PYB900 Ф900 135 115 15-50 50-90 55 333 11.2 2692×1640×2350
PYZ900 Ф900 70 60 5-20 20-65 55 333 11.2 2692×1640×2350
PYD900 Ф900 50 40 3-13 15-50 55 333 11.3 2692×l640×2350
PYB1200 Ф1200 170 145 20-50 110-168 110 300 24.7 2790×1878×2844
PYZ1200 Ф1200 115 100 8-25 42-135 110 300 25 2790×1878×2844
PYD1200 Ф1200 60 50 3-15 18-105 110 300 25.3 2790×1878×2844
PYB1750 Ф1750 250 215 25-50 280-480 160 245 50.3 3910×2894×3809
PYZ1750 Ф1750 215 185 10-30 115-320 160 245 50.3 3910×2894×3809
PYD1750 Ф1750 100 85 5-15 75-230 160 245 50.2 3910×2894×3809
PYB2200 Ф2200 350 300 30-60 590-1000 280/260 220 80 4622×3302×4470
PYZ2200 Ф2200 275 230 10-30 200-580 280/260 220 80 4622×3302×4470
PYD2200 Ф2200 130 100 5-16 120-340 280/260 220 81.4 4622×3302×4470

Note: The above parameters are just for reference. The actual data are subject to the signed contract.
