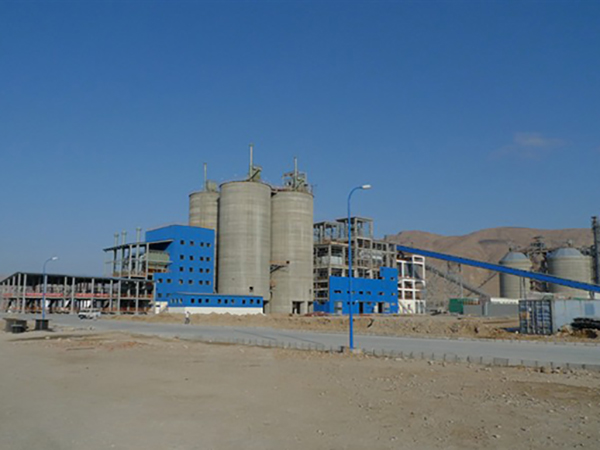

Cement Grinding Plant (Annual Output: 1 Million Tons)

Cement Grinding Plant (Annual Output: 1 Million Tons)

This cement grinding plant with annual production capacity of 1 million tons processes the clinker and slag respectively. For clinker grinding, two Φ4.2m×13m cement mills are adopted. The cement grinding plant delivers excellent performance with stable quality, high productivity and low energy consumption.

Primary technical processes
  • Clinker grinding
  • Slag grinding
  • Mixing of the micro powder of clinker and slag
Technical parameters
Technical parameters Quantity
Cement mill 2
Size: 13m
Capacity: 75-80t/d (PCC)4000 cm2/g,
Residue: 5%
Rotation speed: 16.3±0.1 r/min
Powder separator 2
Model: N-2500
Capacity: 90~150t/h
Max. feeding speed: 450t/h
Powder fineness: 3100~4000cm2/kg
Air flow: 2500 m3/min
Separator structure and pipes
Rotor speed: 145~210 r/min
Electrical resistance: 1.4~1.8 kPa
Rotary cement packaging machine 2
Model: 8RS-PC
Packaging capacity: 100~120 t/h
Air flow: 40~45m3/h，P=5bar
Air cylinder: 8400m3/h
Negative pressure：60mm H2O
Jiangsu Pengfei Group Co., Ltd. is a leading manufacturer of rotary kilns and grinding equipment, and in 2019, we were successfully listed on the Hong Kong stock exchange, demonstrating our close relationships with our customers. At Pengfei, we offer design, production and services for construction, metallurgy, chemical and environmental protection industry. As an EPC service provider, we provide customized one-stop solutions including design, procurement, construction and trial operations to better serve our clients.
