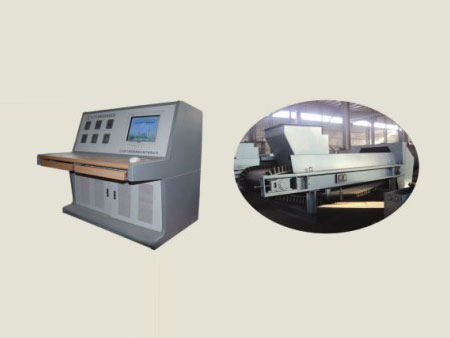

Material Feed Weigher

Material Feed Weigher

The material feed weigher is used for the continuous feed and dynamic weighing of various blocky, granular or powdery materials, such as limestone, iron powder, clay, fly ash, cement, etc. It is divided into the following two types.

  • VVVF way quantitative continuous feeding
      Coupled with PL-QIN weighing display controller and variable speed controller
  • Computer centrally controlled continuous feeding
      Coupled with PC-QI computer centralized control system and CBC-F16 multi-channel amplifier
Structural Features
  • Our material feed weigher is provided with an integrated direct-coupled gear motor which runs with little noise and vibration. This gear motor has dust resistance, high reliability, and long service life.
  • The adopted endless belt with skirt edge conveys material stably with no material leaking.
  • The reducer end face flange is directly connected with the drive roller of the scale body, which simplifies the design of the rotation part and facilitates installation.
  • The unique spring leaf weighing mechanism and special weak magnetism gear speed measuring device give accurate and stable weighing and speed measuring signals.
  • A special device preventing the belt deviating from the track is adopted.
  • This material feed weigher is installed under the raw material silo, so there is no need of any electric vibrating feeder or other intermediate feeding equipment.
Technical Parameters
Dynamic cumulative error ≤1.0%
Stability of zero value ≤0.0035%Cmax
Weighing signal linearity ≤0.2%
Speed measuring signal 40 pulse/revolution
Matched AC induction motor 0.75KW, 1.5KW (four pairs of electromagnetic poles)
Distance between belt surface and footing mounting surface 0.35m or 0.5m
Belt width 500mm, 650mm, 800mm, 1000mm
Conveying capacity 0.05t/h-160t/h
The weighing section is one meter long; the buffer section is 0.7 meter long; center distance between driving and driven rollers is 1.7 meters

Related Names
Combination Weighing Equipment | Dynamic Measurement Machine | Bulk Weigher

Jiangsu Pengfei Group Co., Ltd. is a leading manufacturer of rotary kilns and grinding equipment, and in 2019, we were successfully listed on the Hong Kong stock exchange, demonstrating our close relationships with our customers. At Pengfei, we offer design, production and services for construction, metallurgy, chemical and environmental protection industry. As an EPC service provider, we provide customized one-stop solutions including design, procurement, construction and trial operations to better serve our clients.
