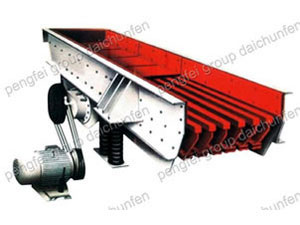

Vibrating Feeder

Vibrating Feeder

The vibrating feeder is able to feed bulk or granular materials to the device which receives the materials uniformly, regularly, and continuously. It can feed materials to the crushing machinery in the sand and gravel production line, and it can coarsely screen those materials.

The vibrating feeder is widely used in the metallurgy, coal mine, building materials, chemical engineering, abrasive, and other industries.

Technical Parameters
Model Funnel size mm Max. feed size mm Capacity t/h Spindle speed r/min Motor power KW Installation slope Weight (excluding electric motor) kg Overall dimensions mm
ZSW-300×70 3000×700 ≤500 60-120 350-800 7.5 0 3225 3075×1450×1250
ZSW-380×95 3800×950 ≤500 100-160 350-800 11 0 4210 3882×1684×1340
ZSW-490×100 4900×1000 ≤500 120-200 350-800 15 0 5004 4957×1677×1365
ZSW-360×110 3600×1100 ≤500 100-160 350-800 11 0 4321 3700×1805×1195
ZSW-490×110 4900×1100 ≤580 200-300 350-800 15 0 6700 4957×1841×1365
ZSW-590×130 5900×1300 ≤700 300-400 750 22 5 7900 4957×1841×1365
ZSW-600×110 6000×1100 ≤600 400-500 350-800 22 0 8200 6000×1841×1365

Note: The above data are only for reference. The actual data is subject to the signed contract.

Related Names
Vibratory Conveyor | Grizzly Feeder | Shaker Conveyer
