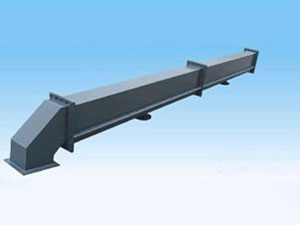

Air Slide Conveyor
The air slide conveyor is pneumatic conveying device used to convey dry powdery materials. It is often used in the cement industry to transport cement and raw material powder. Since it has no rotating parts, it runs with no noise and it has low power consumption. It is safe to operate and convenient to maintain. It also has good sealing property. Changing the conveying direction is very convenient. Multi-point feed and multi-point discharge are achievable. Due to the above advantages, the air slide conveyor is widely used.
The breathable layer of this product adopts the PETS-6 type of synthetic fabric. It is characterized by high temperature resistance (can withstand temperature as high as 150℃), wear resistance, low moisture absorption, light weight, smooth surface, and long service life.
Technical Parameters
| Canvas air slide conveyor | Perforated plate air slide conveyor | ||||
| Width (mm) |
Conveying capacity (i=6%) |
Width (mm) |
Conveying capacity at different tilt degree (m3/h) | ||
| 4% | 5% | 6% | |||
| B250 B315 B400 B500 | About 30 About 60 About 120 About 200 | B250 B400 B500 B600 | 40 80 120 160 | 50 100 150 200 | -- 120 -- -- |
