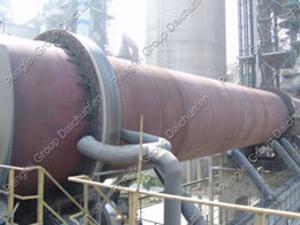

Oxidized Pellet Rotary Kiln

Oxidized Pellet Rotary Kiln
Main components of the oxidized pellet rotary kiln include the rotary part, supporting unit, drive mechanism, kiln hood, sealing mechanism, and the combustion system.
  • The guard board at the kiln mouth and the feed material-recycling unit at the kiln tail are cast individually, so they are convenient for mounting and offer superior resistance to heat, corrosion, and wearing.
  • Cooling air system at the lower kiln end ensures uniform cooling for the shell body and guard plate, providing higher safety and reliability.
  • The kiln hood with large volume design employs a double-leaf wicket structure to make airflow smooth and stable.
  • Both ends adopt a double seal system with simple structure, ensuring convenient maintenance.
  • The combustion system incorporates a spiral-flow type, four-channel pulverized coal burner with an oil injection ignition device.

In addition to rotary kiln, we can also offer many other types of auxiliary equipment for oxidized pellet production, including rotary dryer, disc feeder, disc granulator, chain grate heater, pellet cooler, blender mixer, coal mill, and more.

Technical Specifications
Product name Size Capacity (t/h) Power (kw)
Rotary dryer Φ1.8×14m 30-40 22
Φ2×14m 40-60 22
Φ2.2×12m 50-55 55
Φ2.2×16m 40-45 75
Φ2.4×18m 45-60 95
Φ3×20m 160 220
Φ3.6×24m 150 250
Φ4.2×25m 250 315
Disc granulating machine Φ3.6m 18-20 22
Φ4.2m 28-33 55
Φ4.5m 35-45 75
Φ5.5m 40-60 110
Φ6m 65-70 110
Chain grate heater 1.6×24m 100,000-200,000 tons/year 15
2.4×24m 300,000 tons/year 11
2.8×36m 400,000-600,000 tons/year 18.5
2.8×42m 400,000-600,000 tons/year 18.5
Rotary kiln Φ2.2×18m 10-12 45
Φ2.5×20m 18-25 30
Φ2.8×22m 30-34 90
Φ3×28m 40 90
Φ3.5×30m 50 220
Φ4×30m 90 190
Φ4.7×35m 140-180 315
Φ5×35m 165-202 315
Φ6.1×40m 226-335 315
Pellet cooler 20m ² 40 7.5×2
30m ² 40-60 11×2
40m ² 90 15×2
50m ² 112 15×2
69m ² 130-160 11×2
121m ² 270-304 15×2
128m ² 280-315 18.5×2
140m ² 302 11×2

Note: Above technical specifications are provided for your reference only. Detailed ones are provided in contracts.
