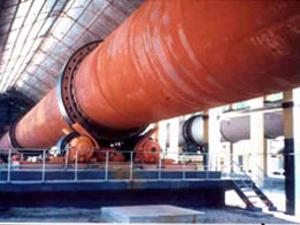

Titanium Dioxide Rotary Kiln

Working Principle

The titanium dioxide rotary kiln is designed with a slope, and rotates slowly. Firstly, feed the filtered titanium dioxide hydrolysate into the upper end of kiln. Then, the burning chamber at the lower end will blow clean flame and hot air to dry and calcine the feeding material at a high temperature over 1000℃. In the meanwhile, the material tumbles due to the rotary of shell, and also moves toward the lower end of rotary kiln due to the slope, which ensures continuous and complete dehydration and calcine. Finally, the materials are discharged into the cooler via the dual hydraulic discharge valves at the bottom of kiln hood. After cooling and classifying, desired titanium dioxide is achieved.

Technical Specifications

Size (m)	Drawing No.	Basic parameters			Main speed reducer	Main motor		Thrust roller type	Supporting bearing	Weight (t)
Size (m)	Drawing No.	Rotation speed (r/min)	Slope (%)	Productivity (t/d)	Model	Power (kW)	Speed (r/min)	Thrust roller type	Supporting bearing	Weight (t)
Φ2.4×38	(T929)	0.2 ～0.6	2.2	30	ZS125	30	1470	Mechanical	Rolling bearing	150
Φ2.8×53	J920	0.1 ～0.3	4	50	ZS145	22	1470	Mechanical		271
Φ3.2×55	J931A	0.1 ～0.3	4	67	ZS165	55	1470	Hydraulic		275.4

Note: The above technical specifications are provided for model selection reference. Detailed specifications are provided in contracts.
