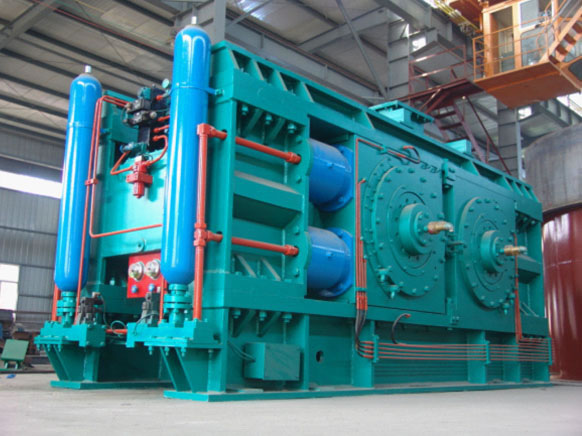

Rolling Machine

Our rolling machine is a newly developed cement grinding mill. It integrates functions such as roller pressing, material scattering, classification, drying, and powder separating. When used with a ball mill, the roller mill can be used for many grinding purposes, like pre-crushing, mixture grinding, semi-finished product grinding, and finished product grinding.

Due to the innovative grinding principle, the rolling machine and its derivative grinding systems can reduce electricity consumption by 50-100%, and improve productivity by 100-300%. It is an ideal choice for old grinding equipment updating.

After roller pressing, 20-35% of the material comes with particle size of 0.08mm, and 65-85% has particle size less than 20mm. There will also be many tiny cracks on the produced material due to the high intensive pressing force, which largely improves the grindability of materials.

Main Features

Due to the adoption of heat overlay welding technique, the wearing resistant layer on pressing rollers is more convenient for maintenance. The technique also reduces the generation or expansion of micro cracks during welding. The roller surface hardening layer comes with high hardness (>HRC58), and high toughness as well. Due to these, the rollers come with service life over 8000 hours.
The utilization of aviation hydraulic technology ensures extremely reliable hydraulic system.
When the hydraulic system co-works with the automatic control system, the rolling machine is able to achieve functions such as, main drive motor load control, automatic fault diagnosis, as well as roller gap deviation control and adjustment.
The available control system adopts fuzzy control principle, and incorporates elements from world famous suppliers.
The powder separator for the roller mill has material scattering, classification, and drying functions. So, this range of cement grinding machine has low operational cost but high efficiency.

Technical Specifications

Model		PFG120 ~50	PFG 120 ~60	PFG 140 ~65	PFG 140 ~70	PFG 140 ~80	PFG 140 ~120	PFG 150 ~100	PFG160 ~140	PFG170 ~100	PFG180 ~120	PFG 180 ~160	PFG200 ~180
Diameter of roller (mm)		Φ1200	Φ1200	Φ1400	Φ1400	Φ1400	Φ1400	Φ1500	Φ1600	Φ1700	Φ1800	Φ1800	Φ2000
Width of roller (mm)		500	600	600	700	800	1200	1000	1400	1000	1200	1600	1800
Linear velocity of roller (m/s)		1.47	1.47	1.48	1.48	1.48	1.52	1.56	1.57	1.65	1.75	1.74	1.83
Standard gap between rollers (mm)		15~30	15~30	20~35	20~35	20~35	20~35	25~40	25~45	25~45	25~45	25~45	25~50
Maximum feed particle size (mm)		55	55	60	60	60	60	60	60	65	65	65	80
Maximum feeding material temperature ( ℃ )		≤130	≤130	≤130	≤130	≤130	≤130	≤130	≤130	≤130	≤130	≤130	≤130
Pre-crushing capacity	Clinker (t/h)	115~170	110 ~165	240 ~300	240 ~334	300 ~350	460 ~530	460 ~500	600 ~720	480 ~620	650~750	920 ~1120	1000~1250
Pre-crushing capacity	Raw mix (t/h)	130~195	175 ~220	260 ~320	280 ~360	320 ~390	485 ~550	480 ~520	650~760	500~650	700~820	920 ~1150	1050~1280
Main motor	Model	Y315L-6	Y355 L-6	YR50 01-8	YR50 01-8	YR56 0-8	YR50 0 -4	YR50 0 -4	YRKK560 -4	YR5004 -4	YR560 -4	YR63 02-4	YRKK7104-4
	Power (KW)	250 × 2	280 × 2	500 × 2	500 × 2	560 × 2	800 × 2	710 × 2	1120 × 2	900 × 2	1250 × 2	1600 × 2	2000 × 2
	Rotary speed (r/min)	960	960	740	740	750	1485	1485	1480	1485	1480	1490	1480
	Voltage (V)	~380V	~380V	~100 00V	~100 00V	~100 00V	~100 00V	~100 00V	~10000V	~10000V	~10000V	~100 00V	~10000V
Model of main reducer		XGL38	XGM38	XGL 48	XGL 48	XGP 48B	RPG 28	RPG 26	GYM18 P2N	JGR2836	GYM18 PZN	GYM22 92N	GYM23PZN
Total weight (t)		65	68	105	110	115	156	150	210	195	225	250	290
