2 Million Ton Cement Grinding Station

2 Million Ton Cement Grinding Station

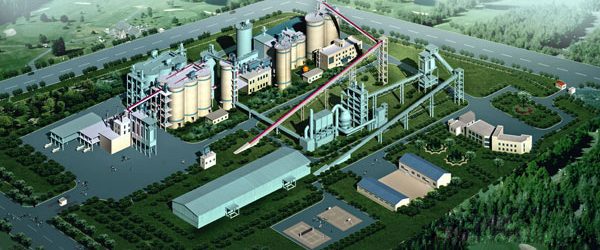

This range of cement grinding station is designed to offer annual production capacity of 2 million tons. It is a complete cement grinding, bulk transportation, and bag packaging line, mainly made up of a Φ4.2×13m open-circuit ball mill, 160-140 type rolling machine, and 1200V type powder separator.

Production Flow
  • Cement clinker unloading and storage
  • Gypsum unloading and conveying
  • Clinker conveying
  • Raw material batching station processing
  • Cement grinding and conveying
  • Pulverized coal storage and weight feeding
  • Cement storage and conveying
  • Cement packaging
  • Bulk cement transportation
  • Air compressor station
Main Components of the Cement Grinding Machine
Equipment function Equipment name Type / specifications Quantity (set) Annual utilization rate % Remark
Gypsum crushing Impact hammer crusher Feeding material size: ≤ 600mm
Discharging material size: ≤ 25mm (90%)
Crushing capacity: 70t/h
1 13.4
Cement grinding Rolling machine CLF160-140
Capacity: 380~500t/h
Feeding material size: ≤ 70mm
Discharging material size: 65%< 2mm; 20% < 0.09mm
2 76.1%
Cement mill Φ4.2×13m
Capacity: 150t/h
Cement fineness: 340m2 /kg
2 76.1% For P.O42.5 cement grinding
Cement bulk transportation Bulk truck Capacity: 100t/h 4 39.9% Calculate by 70%
Cement packaging Cement packaging machine Capacity: 100t/h 2 34.2% Calculate by 30%
